HIGH-PRECISION COILS AND SOLENOID VALVES

We have been a reliable partner to automotive industry suppliers for years – certified in accordance with IATF 16949. KUK winds coils for stepper motors and makes complete solenoid valve units on fully automated lines,  including injection moulding of coil bobbins and overmoulding with standard plug connectors. Winding goods for the automotive industry pass through the PPAP process as standard.

wem-logo-green

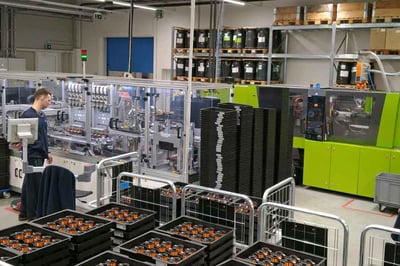

Solenoid valves in several variants from the same assembly line:
Within a few months, KUK Group has set up series production for solenoid valves in several variants. An automotive tier-2 supplier benefits from the rapid ramp-up of series production as well as the flexibility of the self-developed production line: two different products in a total of five variants can be manufactured there.

COMPLETE SOLENOID VALVES FROM ONE SOURCE

Project:
Custom coil production for automotive Tier 2 supplier

Know-how:
Installation interlinked full automation, insert molding bobbin, winding, overmoulding solenoid valve

Advantage:
Rapid series ramp-up, high flexibility

More
KUK winds customer-specific coil formers for the automotive industry in a wide variety of requirements and quantities. Bifilar winding, customised plugs, pins, sockets for plugs or insulation displacement connectors are only part of the range.
KUK winds customer-specific coil formers for the automotive industry in a wide variety of requirements and quantities. Bifilar winding, customised plugs, pins, sockets for plugs or insulation displacement connectors are only part of the range.

WINDINGS ON CUSTOMER-SPECIFIC BOBBINS

KUK winds customer-specific coil formers for the automotive industry in a wide variety of requirements and quantities. Bifilar winding, customised plugs, pins, sockets for plugs or insulation displacement connectors are only part of the range.

Also available are innovative connection techniques and more advanced manufacturing steps for your engines, sensors, solenoid valves, air conditioning systems, bend lighting injection pumps, injection nozzles or turbochargers.

More
KUK winds customer-specific coil formers for the automotive industry in a wide variety of requirements and quantities. Bifilar winding, customised plugs, pins, sockets for plugs or insulation displacement connectors are only part of the range.
KUK assists and supports automotive customers throughout the entire manufacturing process, from engineering to efficiently producible, cost-effective and qualitatively flawless series products that reach the customer on time.

OPTIMAL MANUFACTURING PROCESS

KUK assists and supports automotive customers throughout the entire manufacturing process, from engineering to efficiently producible, cost-effective and qualitatively flawless series products that reach the customer on time.

KUK is a coil manufacturer that adheres to the PPAP process. Depending on the quantity specifications, KUK manufactures these products with adapted tools and fixtures or with fully automated production facilities at the location that is optimal for this product and the planned quantity.

More

COIL AND WINDING GOODS MANUFACTURING FOR AUTOMOTIVE

Windings on customer-specific bobbins
Windings on customer-specific bobbins

KUK offers windings on customer-specific coil formers with all common bobbin shapes and geometries. All conceivable shapes of electric coils are customer-specific manufactured.

Details
Overmoulding
Overmoulding

In overmoulding a coil or assembly is overmoulded with a synthetic material in a further process step. In this way, the winding goods are optimally protected for harsh environmental conditions.

Details
Toroidal coil
Toroidal coil

KUK manufactures customer-specific toroidal core coils with an inner diameter from 3 mm. The core is mainly ferrites from 1.5 mm.

Details
